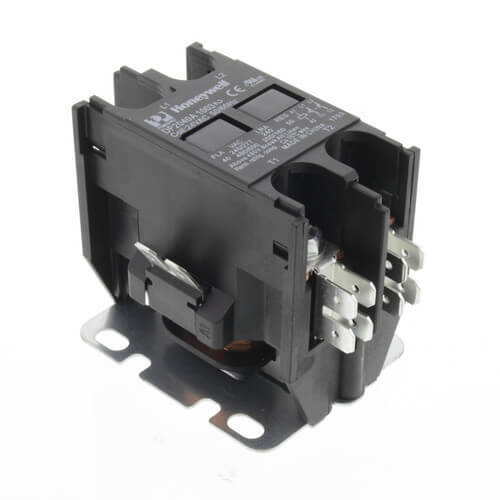

Honeywell - DP2040A1003 - 2-Pole Definite Purpose Contactor, 40A
Overview:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Contact Electrical Ratings (AFL @ 277, 480, 600 Vac): 40 A @ 240/277 Vac, 480 Vac, 600 Vac
Features:
Silver cadmium oxide contacts provide long life under demanding duty cycles.
Low profile design allows for more wiring room.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Coil Ratings Voltage: 277 Vac
Poles: 2
Electrical Connections (main): #10-32 combination head screws
Contact Connections (coil): double 1/4 in. quick-connects
Dimensions: 2.37" high x 3.3" wide x 2" deep
|
